Descrizione

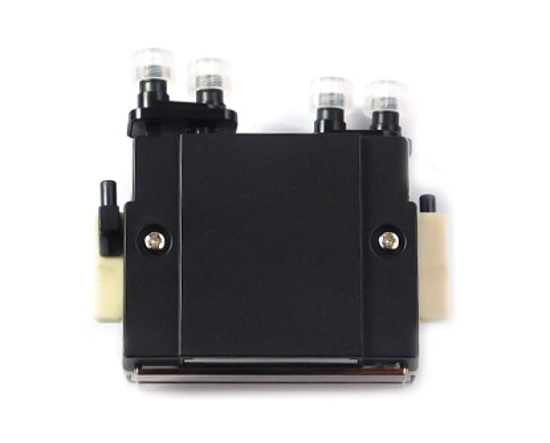

This printhead is suitable for EFI Rastek H652 printers. This is the original EFI part (number 45129144). We recommend to change the head cables when installing a new printhead.
Product Specifications
- Technology: Multi-drop grayscale micro-piezo
- Grayscale levels: 16
- Active nozzles: 636
- Print swathe width: 53.6 mm
- Nozzle pitch: 169 μm
- Native resolution: 150 dpi
- Printhead weight: 148 g
- Dimensions: 85 x 70 x 23 mm
- Drop volume: 6 - 90 pl
- Typical firing frequency: 2.8 - 28 kHz
- Ink Compatibility: oil-based pigment ink and UV curable pigment ink
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Compatibilità di stampante:
EFI Rastek H652, EFI Rastek R3225, EFI Rastek T1000, EFI Rastek T660, EFI Vutek H1625, Raster Daytona H700UV
