Descrizione

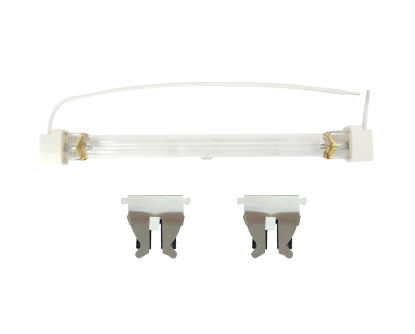

This Subzero 170 Cassette H is suitable for SwissQprint Nyala & Impala printers. This is the original SwissQprint part.
Powerful UV Output
The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.
This lamp comes with an alcohol cleaning wipe to keep the lamp stain-free during installation.
Subzero 170
- Power: 100 W/cm variable
- Arc length: 170mm
SubZero Standard Features:
- Ultra light weight with compact ‘footprint’
- High intensity reflector system
- Replaceable quartz front plate
- Quick change lamp cassette
- Advanced halide bulb technology
- Integrated air-cooling
- Switch-mode electronic power supply
- Hi-flex plug and socket cabling connections
- 500 hours coverage under normal conditions
- 6 months shelf life
Additional SubZero Options
- High Speed Electronic Shutter
- Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
- Enhanced optics
SubZero Compliances (Pending)
- ISO CE 60950-1
- (UL CUL CB 60950-1)
- CE EN 60204
- EMC EN 55015
- EMC EN 61000
Power Supply
- Switch-mode Electronic
- 200 – 250V 50 – 60Hz
Compatibilità di stampante:
Human Digital Technology M-JET, Human Digital Technology XUV-jet Plus, SwissQprint Impala, SwissQprint Nyala, SwissQprint Oryx 2
