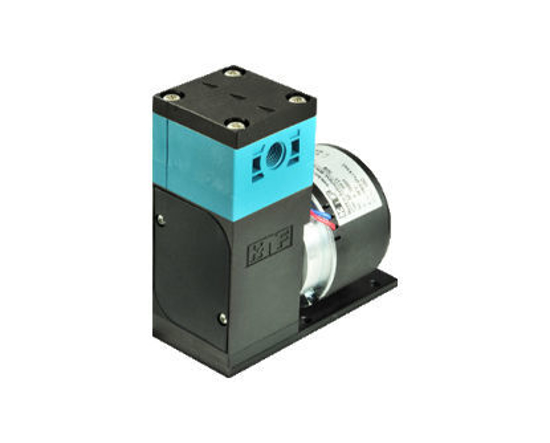

This NF 100 diagram liquid pump is suitable for a various range of printers.
Specifications
- Operating Voltage : 24
- Power consumption (W): 10.3
- I load max. (A): 0.46
- IP protection factor motor: 54
- Weight (g): 480
- Flow rate (l/min) : 1.2
- Suction height (mWg): 3
- Pressure head (mWg): 10
- Permissible ambient temperature (ºC): +5 to +40
- Permissible liquid temperature (ºC): +5 to +80
- IP protection factor pump: 30
- Material :
- pump head : PP
- Diaphragm : PTFE
- Valves : FFKM
Compatibilità di stampante:
Mark Andy P7 Hybrid
