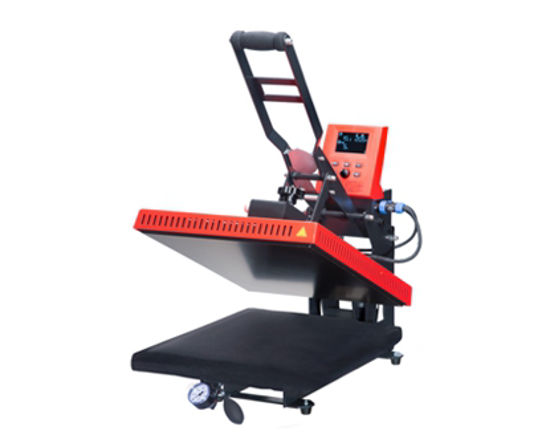

Secabo TC7 SMART Membrane Modular Textile Heat Transfer Press 40x50cm

Secabo TC7 SMART Membrane clam heat press, with a work surface of 40cm x 50cm is a modular automatically opening knee lever press with bluetooth.
Cod.: 109.007.16
Codice articolo produttore: 109-007-16
Spedizione gratuita
Produttore: Secabo
€1.569,00

Descrizione

FREE SHIPPING on all orders in Europe (excepted restricted areas).

The TC7 SMART Membrane clam heat press by Secabo is a modular automatically opening knee lever press with bluetoothThere's no need for the operator to wait next to the press during transfers, consequently allowing him to pursue other activities. The press automatically opens after the configured time. An acoustic signal will notify the operator three seconds ahead of time. The pressing process can be stopped by the press of a button at any time. This feature may for example be used for the purpose of pre-pressing textiles. For your convenience, the temperature and press duration can be pre-configured by use of a digital controller. A counter keeps track of completed pressing processes and can be reset to zero, if desired.

The TC7 SMART Membrane heat press, with a work surface of 40cm x 50cm, features a heat plate equipped with an additional cover plate for the purpose of protecting the operator from suffering burn injuries. The membrane lower plate automatically smooths the difference of thickness of the surface and speeds up the transfer process when using knobs, zippers or seams for i.e. The membrane can be easily inflated via a small inflation bulb. The contact pressure is set via a large hand wheel on the top of the heat plate. When the heat press is closed, a manometer reliably displays the current contact pressure - in grams per square centimeter. The pressure can be adjusted via the inflation bulb and a release valve.

The TC7 SMART Membrane offers a fully modular design. Control unit, heating plate, base plate and base frame can be removed and replaced in just a few simple steps. As a result, the implementation of other heat plates, for example, is made possible. The TC7 folding press is suitable for professional use of all common heat transfer methods, including flock foils, flex foils, sublimation, inkjet-flex, etc. Optionally, the Secabo TC7 SMART Membrane can be equipped with removable plates of various formats, a quick change system and a slide-extension for use as a double plate press.

Secabo Smart Transfer App

The Secabo Smart Transfer App is a free control app for the SMART heat presses by Secabo. In addition to normal control functions, suitable transfer settings covering many types of fabric and transfer media can be retrieved from a cloud database. Simply enter the type of fabric and the transfer material and immediately retrieve the matching combinations of temperature, time and pressure. Additional features, such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat transfer methods. The Secabo Smart Transfer App can also be used to control multiple SMART heat presses using a mobile device - smart phone or tablet.

Watch the video and discover more about the Secabo Smart Transfer App

Download from Google Play Store here
Download from Apple Itunes Store here

Product Features

- Membrane Lower Plate

       The membrane lower plate automatically smooths the difference of thickness of the surface

- Auto Opening
       Automatic release announced by an acoustic signal

- Modular Design
Control unit, heating plate, base plate and base frame can be removed and replaced in just a few simple steps

- Control app for precise and efficient workflow.
      The device is suitable for control by the Secabo Smart Transfer App.
      With this application transfer settings can be selected and saved

- Bluetooth
      The device can be connected and controlled via Bluetoth with a mobile device
      and the Secabo Smart Transfer App.

- Digital Controllers

        Time and temperature can easily be set and controlled by digital controllers


- Variable Pressure

       The pressure can easily be adjusted - depending on the technology and the object

- Exact Temperature Distribution
       The high-quality heat plate ensures an exact temperature distribution over the
       whole heating plate

- Fully modular design
      Control unit, heating plate, base plate and base frame can be removed and replaced
      in just a few simple steps.


- Big Working Space
       The heat press can be opened to an angle of 40° so objects can be aligned precisely and easily.

- Safe Use
       The safety and quality of the machines is permanently controlled by German Safety Standards

- Minimal Temperature Fluctuations
        The intelligent controllers reduce temperature fluctuations to a minimum

- Exchangeable base plates now available in combination with the Quick Change System

Product Specifications
    - Heat Press: Secabo TC7 Smart Membrane Modular with bluetooth
    - Type: Clam Heat Press
    - Working Area: 40cm x 50cm
    - Floor Area: 24cm x 52cm

    - Folding Angle: 0° - 40°
    - Max Temperature: 225°C
    - Max Time Setting: 999s
    - Max Pressure: 250g/cm²
    - Pressure Setting: Height Adjustment of the Heat Plate by Hand Wheel
    - Power Supply: 230V / 50Hz - 60Hz, 1,80kW
    - Environment: +5°C - +35°C / 30% - 70% Humidity
    - Weight: 39kg
    - Dimensions Closed (W x H x D): 43cm x 57cm x 75cm
    - Dimensions Open (W x H x D): 43cm x 93cm x 74cm
    - Scope of Delivery: Heat Press, Cable, Manual
    - Runs on 220V (110V transformer is available here)

Warranty: 2 years
