Descripción

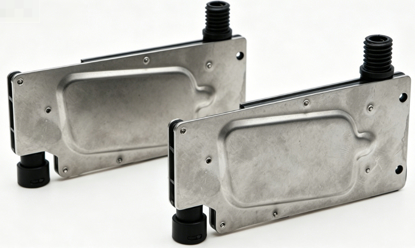

This Seiko 1024HG-L 28PL Solvent / UV printhead is suitable for a range of printers, including Infiniti printers. This printhead is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IEB1024N0L-2F01 replacing IEA1024N07-2F01 and IEB1024T0L-2G01). We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications:
- Drop Volume: 1024HG-L = 28 pL @ 1 drop binary, 6m/s
- Native Nozzle Resolution:180 npi (2 colors),360 npi (1 color)
- Usable Ink Types: Oil-, UV-, Sovlent-based
- Possible Print directions: Vertical and Horizontal
- Number of grey levels: 8
- Jetting frequency: TBD
- Active Nozzles: 1024 at 4 rows
- Ink Inlets: 2
- Print Width: 72.17 mm
- Printhead weight: less than 570 g
- Dimensions: 137.0 x 38.0 x 115.7 mm
- Driving Interface: Parallel interface, I2C-compatible serial communication
This printhead carries a manufacturer warranty. Country of origin : Japan
Compatibilidad de impresora:
Infinity FY-3200AT Mini, Infinity FY-3200AT Plus-H6/H4, Infinity FY-3200L, Infinity FY-5300AT Plus
