Description

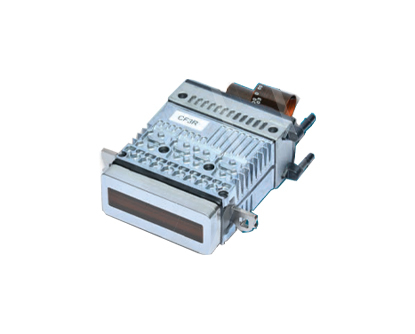

This Toshiba CF3 printhead has 300 npi/row with ink re-circulation through all channels. It is suitable for jetting ink with larger particle size and 1 color per head.
We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications
- Print Method: Drop on demand piezo
- Ink Re-circulation Structure: ink re-circulation through all channels
- Print Width: 53.95mm
- Number of channels: 1278
- Nozzle resolution: 300npi/row
- Number of rows: 2
- Nozzle Spacing (Row to row distance): 7.94mm
- Grayscale level: 6 levels/0～5drops
- Drop Volume: 20pL/5drops
- Maximum drop volume: 3～4pL
- Frequency: 9.2kHz/5drops
- Power Supply Voltage for Driving the Head: +7V～+15V, -7V～-15V
- Power Supply Voltage for Driving Circuit: 5V, 24V
- Ink type: UV-curing & oil-based
- Built-in Temperature Sensor: included
- Head Cooling Method: Air-cooling
- Size, Weight: 96.7mm(W)×29.3mm(D)×100.7mm(H), 255g
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
This part is no longer available. The manufacturer has discontinued and replaced it with Toshiba CF3R Printhead.
