Description

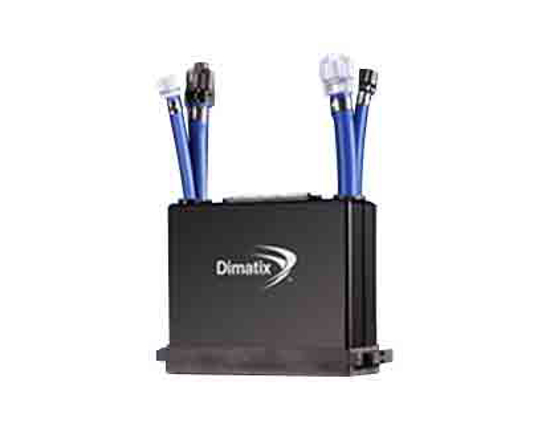

The StarFire™ SG1024/LA2Ci is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink re-circulation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.
Each SG1024/LA printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired. We recommend to change the head cables when installing a new printhead.
The StarFire™ SG1024/LA2CI and SG1024/LA2C are the same printheads.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Features
- Number of addressable Jets per module: 1024
- Print width: 64.96mm (2.55")
- Native resolution: 200 dpi percolor and interlaced for a 400 dpi swatch
- Native drop size: 80pl
- Largest drop size: 200pl
- VersaDrop™ max productivity: 1500ng-kHz with drop sizes between 80 & 200ng
- Fire frequency: Up to 20 kHz
- Inkjet operating temperature range: Up to 50°C (122°F)
- Nozzle Plate technology: Metal
- Printhead heat type: Integrated heater, thermal transfer
- OEM accessible non-volatile memory: 64 byte rewriteable
- Integral temperature sensor: Integrated
- Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
- Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
