Description

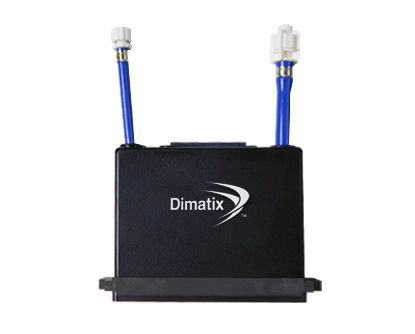

The SG1024/XSA printhead has 1024 independent channels arranged in 8 rows in a single nozzle plate for resolutions up to 400 dpi.
The StarFire SG1024/XSA is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink re-circulation and single color operation at 400 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations. We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Features:
- Number of jets per module: 1024
- Print Width: 64.96 mm [2.55 in.]
- Native resolution: 400 dpi
- Native Drop Size: 6 pl
- Largest Drop Size: 20 pl
- Versadrop max productivity: 300 ng-kHz with drop sizes between 6 and 20 ng
- Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
- Operating Temperature: up to 50°C (122° F)
- Nozzle Spacing: 0.0635 mm [0.0025 in.]
- Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
- Nozzle plate technology: metal
- Printhead heat type: Integrated heater, thermal transfer
- Integral temperature sensor: integrated
This printhead carries a manufacturer warranty. Country of origin : Japan
Printer compatibility:
Kerajet Keratex Mega
