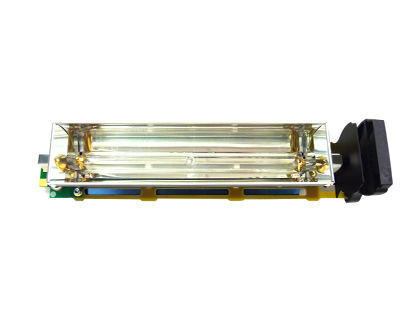

Nyala SubZero 170 Bulb Kit H

This Subzero 170 Bulb Kit H is suitable for SwissQprint Nyala & Impala printers. This is the original SwissQprint part.

Powerful UV Output

The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length  the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life  eliminating unnecessary downtime and maintenance.

This lamp comes with an alcohol cleaning wipe to keep the lamp stain-free during installation.

Subzero 170
    Power: 100 W/cm variable
    Arc length: 170mm
    Total length: 236mm
    500 hours warranty
    6 months shelf life

SubZero Standard Features
    Ultra light weight with compact ‘footprint’
    High intensity reflector system
    Replaceable quartz front plate
    Quick change lamp cassette
    Advanced halide bulb technology
    Integrated air-cooling
    Switch-mode electronic power supply
    Hi-flex plug and socket cabling connections

Additional SubZero Options
    High Speed Electronic Shutter
    Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
    Enhanced optics

Subzero Compliances
    ISO CE 60950-1
    (UL CUL CB 60950-1)
    CE EN 60204
    EMC EN 55015
    EMC EN 61000

Power Supply
    Switch-mode Electronic
    200 – 250V 50 – 60Hz

Drucker Kompatibilität:
Human Digital Technology M-JET, Human Digital Technology XUV-jet Plus, SwissQprint Impala, SwissQprint Nyala
